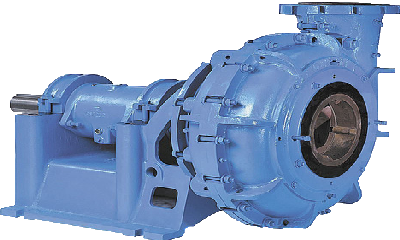

Slurry Pumps
Battlemax heavy duty slurry pumps are desined for long life, efficient operation and ease of maintainance resulting in lower total cost of operation.
Pumps are avaialable in rubber, High-Chrome, Ultra-Chrome or ceramic-lined materials fro heavy-duty abrasive applications.
Bearing Assembly and Shaft
The shaft is designed with a short overhang to:
- Reduced shaft deflection,
- Minimise vibration
Provided with hardened shaft sleeve to protect the shaft
Optional dimensionally interchangeable heavy duty bearing assemblies
Bearing assembly is retained on a one piece frame
Grease-purged piston rings to help seal contaminates out of bearing housing
Impeller
Enclosed impellers to maximise efficiency
Pump-out vanes on both shrouds
- Minimises recirculation
- Reducins stuffing box pressure
High chrome, ceramic or elastomer liquid ends
Interchangeable hard metal, ceramic and elastomer impellers
Impeller clearance set my moving bearing assembly
High efficiency impeller optional

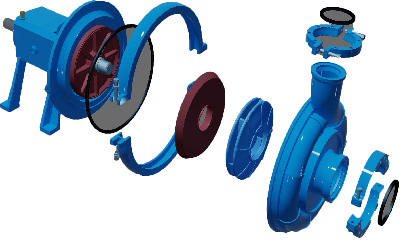

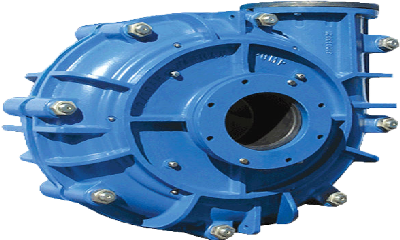

Double Casing with Radial Split Outer Casing
Ease of assembly and disassembly of liquid end Optional construction for higher working pressures Removable liners are positively attached with fasteners Interchangeable material options
Centrifugal Seal Option
Reduces or eliminates need for gland service water Reduces sleeve wear and possible bearing contamination Interchangeable material options
Removable Liner

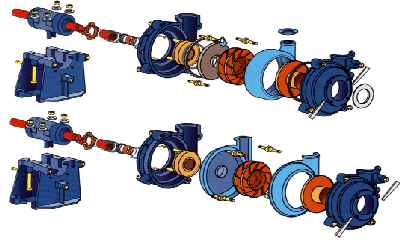

Removable high chrome, elastomer, ceramic and tungsten coated liners can be independently replaced, minimising maintenance costs Battlemax Pump Liner and Impeller Material have interchangeable wear part combinations. Top diagram is exploded view of Battlemax metal-lined International (IN) Pump and bottom diagram is exploded view of Battlemax elastomer-lined International (IN) Pump.
Construction and Materials Options
| STANDARD | OPTIONAL | |||
|---|---|---|---|---|
| LINERS | High Chrome Natural Rubber |
Ultra Chrome, special pH alloy urethane,ceramic |
||
| IMPELLERS | High Chrome Natural Rubber |
Ultra Chrome, special pH alloy urethane,ceramic |
||
| Cast Iron | Ductile Iron | |||
| SHAFT SEAL | Packed gland stuffing box or expeller seal |
Mechanical Seal |
||
| An optional heavy duty bearing assembly is available from Battlemax Pumps for applications where additional power or bearing loading is required | ||||
| STD. BEARING ASSy | HD. BEARING ASSy | |||
| Size | kW Max | Size | kW Max | |
| C | 30 | CC | 55 | |
| D | 60 | DD | 110 | |
| E | 120 | EE | 225 | |
| F | 240 | FF | 425 |
